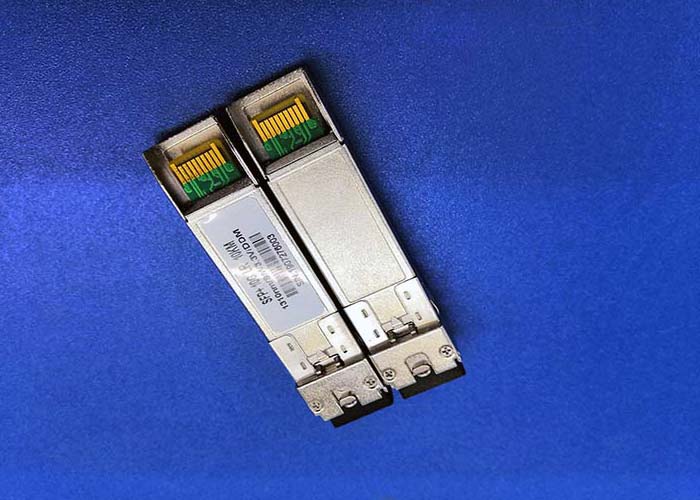

Logo Customized 10G BIDI SFP+ Optical Transceiver Module 1330nm/1270nm LC 40KM
Applications
High-speed storage area networks
Computer cluster cross-connect
Custom high-speed data pipes
PRODUCT FEATURES
Supports 9.95 to 10.5 Gb/s bit rates
Power dissipation <1W
Extension temperature range 0°C to 70°C
Uncooled DFB
Receiver limiting electrical interface
Simplex LC connector
Hot-pluggable SFP+ footprint
Bi-directional 10G over single strand single mode fiber
Single 3.3V power supply
Maximum link length of 20km
PRODUCT DESCRIPTION
The SFP+10G-LR modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .
The SFP+ module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.
SFP+10G modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1330nm DFB transmitter, PIN photo-detector,LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Maximum Supply Voltage | Vcc3 | -0.5 | - | 4.0 | V | |
| Storage Temperature | TS | -40 | - | 85 | °C | |
| Operating Humidity | - | 5 | - | 95 | % | |
| Maximum Supply Voltage | Vcc3 | -0.5 | - | 4.0 | V |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
| Power Supply Voltage | Vcc | 3.13 | 3.30 | 3.47 | V | |
| Power Supply Current | Icc | - | - | 300 | mA | |
| Case Operating Temperature | Top | 0 | - | 70 | °C | |
| Data Rate | - | - | 10.3125 | - | Gb/s | |
| 9/125um G652 SMF | Lmax | - | - | 20 | Km |
Spec
| Parameter | Symbol | Min | Typ | Max | Unit | Ref. |
| Transmitter | ||||||
| Output Opt. Power | PO | -1 | 4 | dBm | ||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| RMS Spectral Width(-20dB) | σ | 1 | nm | |||
| Optical Extinction Ratio | ER | 3.5 | 4.5 | dB | ||
| Tx Jitter(SONET)20KHZ-80MHZ | Txj1 | 0.3 | UI | 3 | ||
| Tx Jitter(SONET)4MHZ-80MHZ | TXj2 | 0.1 | UI | 3 | ||
| Path penalty at 800ps/nm@9.95Gb/s | 2 | dB | ||||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Center Wavelength | λc | 1320 | 1330 | 1340 | nm | |
| Receiver | ||||||
| RX Sensitivity @10.3 Gb/s | SENS | -15 | dBm | 1,2 | ||
| Receiver Overload | -1 | dBm | ||||
| Optical Center Wavelength | λC | 1260 | 1270 | 1280 | nm | |
| LOS De-Assert | LOSD | -17 | dBm | |||
| LOS Assert | LOSA | -30 | dBm | |||
| LOS Hysteresis | 0.5 | 2 | 6 | dB | ||
Notes:
1. Measured with conformance signals defined in FC-PI-2 Rev. 10.0 specifications.
2. Measured with PRBS 231-1 at 10-12 BER.
3. GR-253-CORE Issue 4.
4. With optical input power at the receiver between -1 ~ -11dBm
|
|
