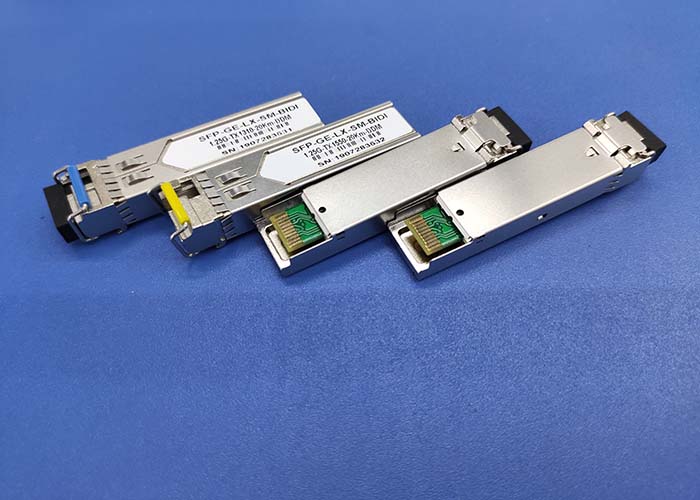

TX1550nm RX1310nm 40KM Compatible SFP Modules 100BASE BIDI SM

PRODUCT FEATURES

Simplex LC Connector Interface

Hot Pluggable,Metal enclosure, for Lower EMI

Distance up to 40KM

Single 3. 3V Power supply

Operating data rate up to 155Mbps

Tx1550/Rx1310, 1550nm DFB Laser, 1310nm PIN-TIA

DDM function optional

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Compliant with MSA SFP Specification

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

PRODUCT DESCRIPTION

An optical module, also called fiber optic transceiver or optical transceiver, is a typically hot-pluggable device used in high-bandwidth data communications applications. Transceiver modules typically have an electrical interface on the side that connects to the inside of the system and an optical interface on the other side that connects to the various devices through a fiber optic cable. An optical module functions as a photoelectric converter which converts the electrical signal into light and vice versa.

155Mbps SFP BIDI Optical Transceiver Module is small form factor pluggable module for bi-directional serial optical data communications such as STM-8, OC-24,Fiber Channel, It is SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of 1550nm.

155Mbps SFP BIDI Optical Transceiver Module Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 40KM in 9/125um single mode fiber.

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
