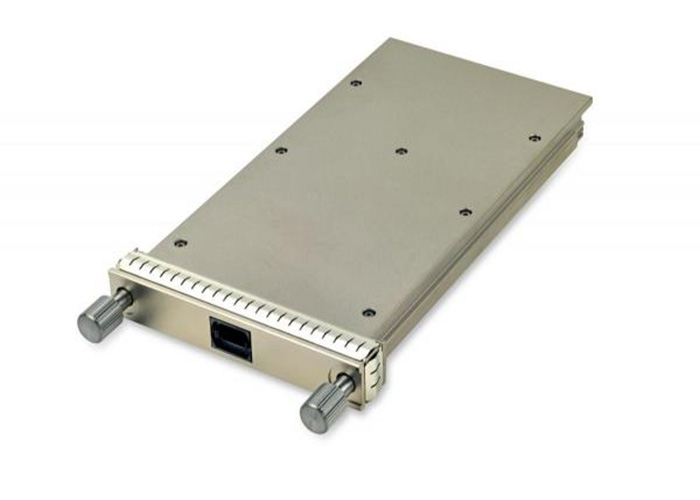

100GBASE-LR4 10km CFP Optical Module 1310nm Fibre Channel Transceiver

Applications

OTN OTU4 4I1-9D1F

100GBASE-LR4 100G Ethernet

PRODUCT FEATURES

Hot-pluggable CFP form factor

Supports 103.1Gb/s aggregate bit rate

Power dissipation < 24W

RoHS-6 compliant (lead-free)

Commercial case temperature range of 0°C to 70°C(Standard)/ -40°C to 85°C (Industrial)

Single 3.3V power supply

Maximum link length of 10km on Single Mode Fiber (SMF)

Temperature-stabilized 4x25Gb/s LAN-WDM transmitter

CAUI electrical interface

Duplex LC receptacles

MDIO management interface

PRODUCT DESCRIPTION

100G CFP LR4 is a optical transceiver module which is a hot pluggable form factor designed for high speed optical networking application. It is designed for 100 Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module management interface.

100G-CFP-LR4 compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface. The transceiver is RoHS-6 compliant and lead-free.

100G-CFP-LR4 100GE CFP transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC.
