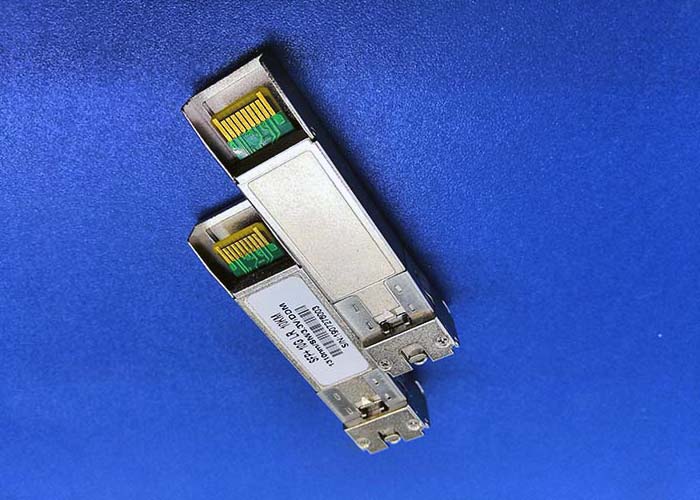

Duplex LC DFB Laser 1310nm 10Gbps Single Mode Fiber Module 10KM SFP+

PRODUCT DESCRIPTION

SFP+10G-LR Single-Mode Transceiver is SFP+ modules for duplex data communication as 8G Fiber Channel, IEEE 802.3ae 10G Base-LR/LW It is SFP+ 20-PIN Connector to allow hot plug capability.

Digital diagnostic monitor functions are available via I²C. This module is designed and operates at DFB Laser 1310nm wavelength.

SFP+10G-LR modules Complaint with IEEE 802.3ae 10GBASE-LR,Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit SFP module “SFP+”,1310nm DFB transmitter, PIN photo-detector,Dual LC connector,2-wire interface for management specifications compliant with SFF 8472 digital diagnostic, Compliant with SFF8472 Digital Diagnostic Standard(DDM)

The SFP+10G-LR modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e .

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

PRODUCT FEATURES

Single 3.3V power supply

Maximum link length of 10km

Uncooled DFB

Receiver limiting electrical interface

Duplex LC connector

Hot-pluggable SFP+ footprint

Bidirectional 10G over single strand single mode fiber

Supports 9.95 to 10.5 Gb/s bit rates

Power dissipation <1W

Extension temperature range 0°C to 70°C

Built-in digital diagnostic functions

Recommended Operating Conditions

Specification of Transmitter

Note (1): Measure at 2^7-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

V. Specification of Receiver

Note (1): Measured with Light source 1310nm, ER=5dB; BER =<10^-12 @PRBS=2^7-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)

Applications

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links

10GBASE-BX
