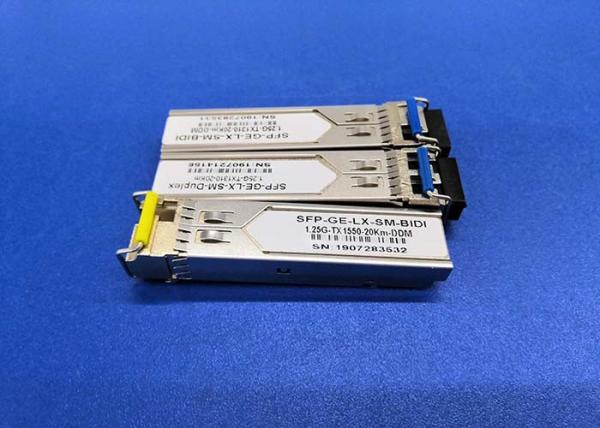

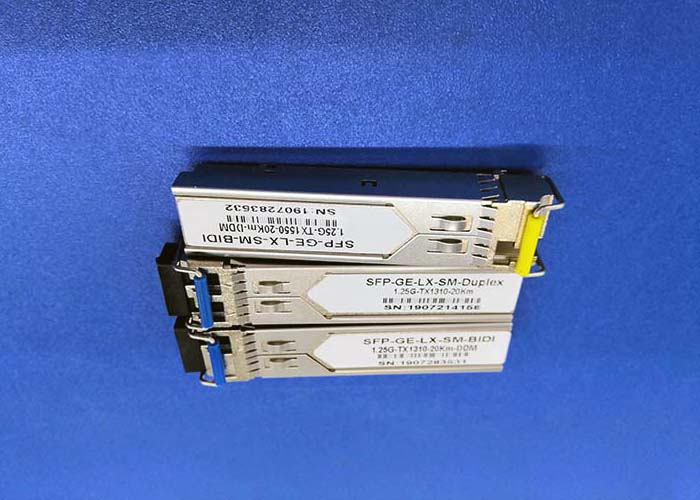

SM 100BASE LC 1310nm Laser RX1550nm Single Mode Fiber Module Distance 40KM

PRODUCT DESCRIPTION

SFP transceivers are high performance, cost effective modules supporting dual data-rate of 155Mbps and 40km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

The SFP Module compliants with Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Applications

100Base Ethernet
Metro/Access Networks
1×Fibre Channel
Other Optical Links

Recommended Operating Conditions

SPEC

PRODUCT FEATURES

Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Data-rate of 155Mbps operation
1310nm FP laser and 1550nm PIN-TIA for 40km transmission
Compatible with SONET OC-24-LR-1
+3.3V single power supply
Operating case temperature:
Commercial : 0 to +70°C
Industrial : -40 to +85°C
