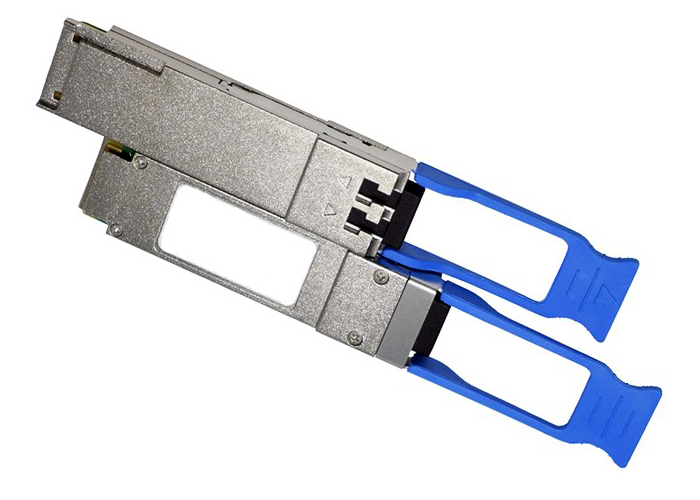

10KM QSFP + LR4 1310nm 40G Optical Transceiver Module LC Connector SMF

PRODUCT FEATURES

Single 3.3V power supply

Maximum link length of 10km on Single Mode Fiber (SMF)

Uncooled 4x10Gb/s CWDM transmitter

XLPPI electrical interface

Duplex LC receptacles

Built-in digital diagnostic functions

Hot-pluggable QSFP+ form factor

Supports 41.2 Gb/s aggregate bit rates

Power dissipation < 3.5W

RoHS-6 compliant (lead-free)

Commercial temperature range 0°C to 70°C(Standard), -40°C to 85°C (Industrial)

Applications

40G Ethernet

Infiniband interconnects

40G Telecom connections

Data Centers

Focused for use in controlled environments such as data centers

PRODUCT DESCRIPTION

The 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.

QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4. These transceivers are focused for use in controlled environments such as data centers. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU.

Optical Characteristics s (TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts):

Note: 1. 12dB Reflection
