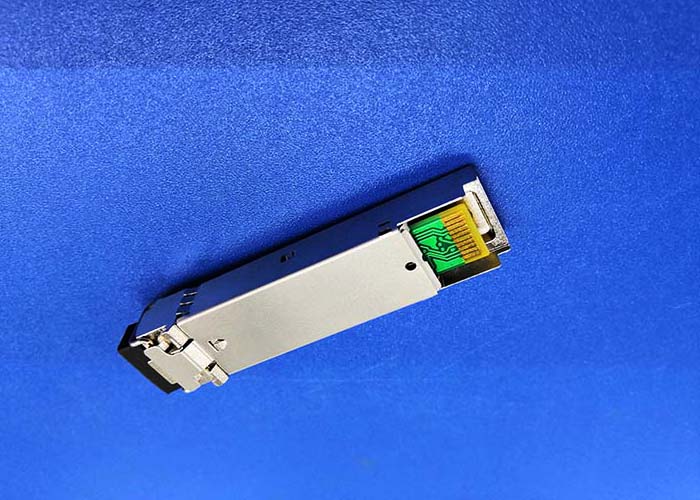

Simplex LC 1.25Gbps Optical Transceiver Module SFP 10KM BIDI TX1550nm RX1310nm SM

PRODUCT DESCRIPTION

SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Applications

Switched backplane applications

Router/Server interface

Fiber Channel

Switch to Switch interface

Other optical transmission systems

PRODUCT FEATURES

Compliant with MSA SFP Specification

Hot Pluggable,Metal enclosure, for Lower EMI

Single 3. 3V Power supply

Operating Case Temperature: Commerical:0 to 70 °C Industrial:-40 to 85 °C

Tx1550/Rx1310, 1550nm DFB Laser, 1310nm PIN-TIA

Simplex LC Connector Interface

DDM function optional

Operating data rate up to 1.25/1.063Gbps

Distance up to 10KM

Digital Diagnostic Monitor Function Compatible with SFF-8472

2 years warranty

Specification of Transmitter

Note (1): Measure at 2^23-1 NRZ PRBS pattern

Note (2): Transmitter eye mask definition

Specification of Receiver

Note (1): Measured with Light source 1310nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
